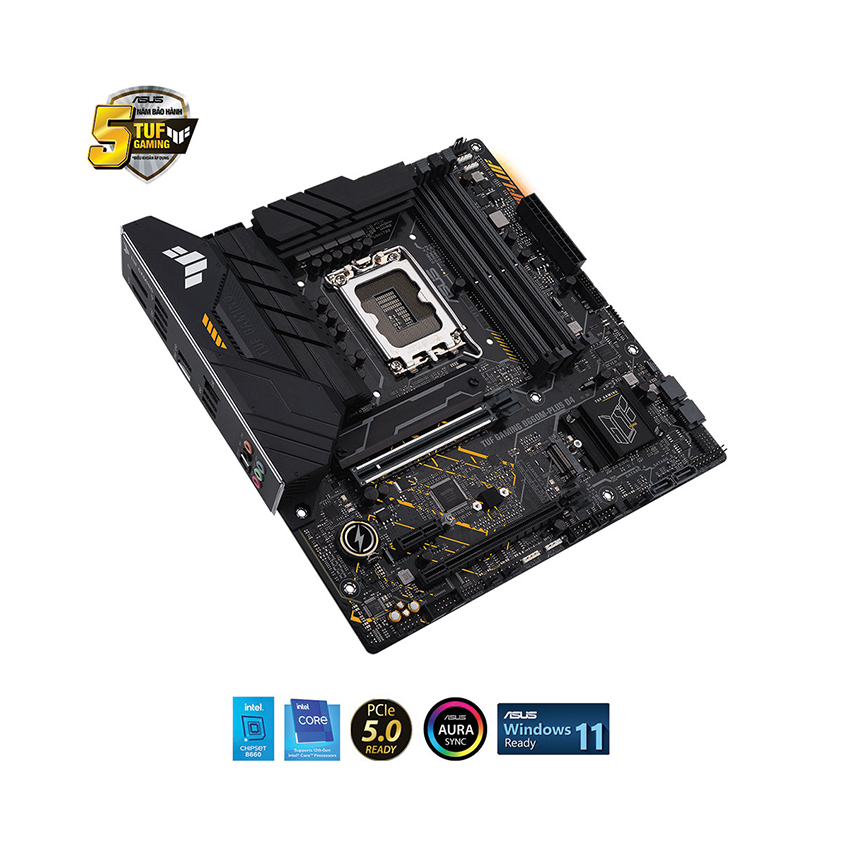

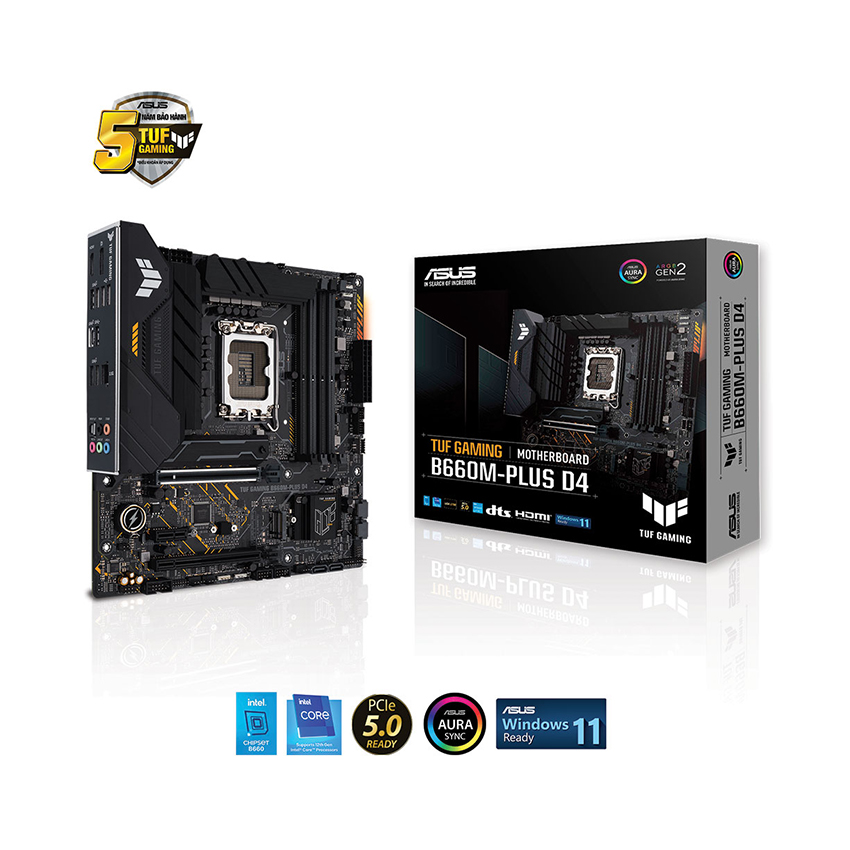

Mainboard Asus TUF Gaming B660M-Plus D4 Socket LGA1700 Chính Hãng Viết Sơn
3.410.000 đ
Thông số sản phẩm
- Chipset: Intel B660
- Socket: Intel LGA 1700
- Số khe RAM: 4
- Kích thước: M-ATX
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | Asus |
| Model | B660M-PLUS D4 |
| CPU hỗ trợ | Intel |
| Chipset | B660 |
| RAM hỗ trợ |
4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/
4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/
3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/
2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
|
| Khe cắm mở rộng |
Intel® 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel® B660 Chipset*
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
|
| Ổ cứng hỗ trợ |
Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
– Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
|
| Cổng kết nối (Internal) |
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header
|
| Cổng kết nối (Back Panel) |
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
|
| LAN / Wireless | |
| Kích cỡ |
microATX
24.4cm x 24.4cm |
